S467.7 FMW VBAND TURBO

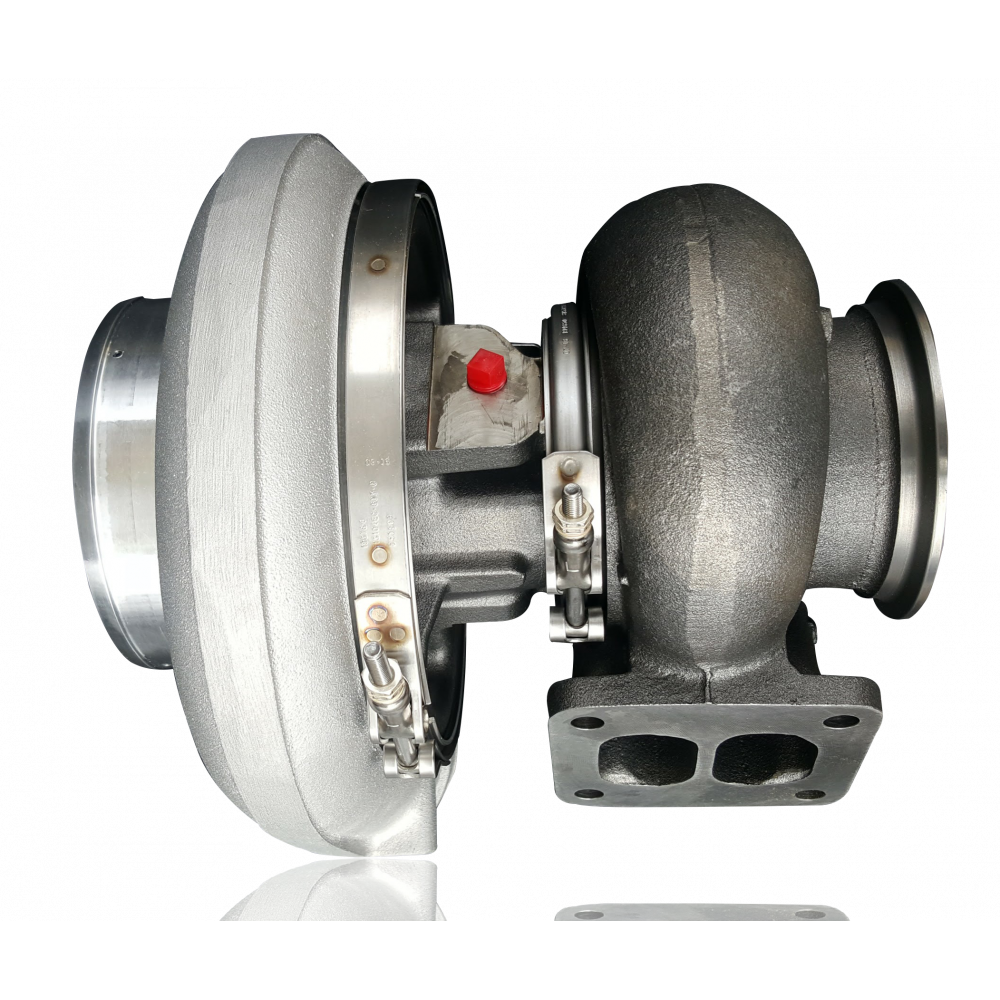

💥 Stainless Diesel S467 FMW Turbocharger with Twin Scroll Turbine Housing
Built for Power | Tuned for Efficiency | Made to Perform

Experience top-tier performance with the S467 FMW (Forged Milled Wheel) Turbocharger—a powerful solution for high-horsepower applications. Featuring advanced extended tip compressor technology and a precision twin scroll turbine housing, this turbo delivers rapid spool, reduced lag, and maximized power output.

🔩 Turbo Specs & Wheel Dimensions:

Compressor Wheel:
• 67.7mm inducer
• 91mm exducer
• Forged Milled Wheel (FMW) with Extended Tip Technology for superior airflow and efficiency

Turbine Wheel:
• 83.5mm inducer
• 74mm exducer
• Made from high-strength Inconel 713 – engineered to withstand extreme heat in high-performance builds

🛠️ Housing Configuration:

Compressor Housing:
• 5" Inlet for maximum airflow
• Standard V-Band Outlet – ensures easy installation and leak-free reliability

Exhaust Housing (Twin Scroll):
• Standard: T4 1.10 A/R – Divided volute for balanced exhaust flow
• T4 Inlet Flange (3.25" x 2.75") – Optimized for high-flow twin scroll setups
• Quick-release V-Band Discharge
• Cast in durable ductile iron for extreme durability and thermal resistance

Optional A/R Sizes Available:
• T4 0.90 A/R
• T4 1.00 A/R
Choose the A/R ratio that matches your specific build and boost goals.

🔥 Why Choose the S467 FMW?

✅ Twin Scroll Housing for faster spool and improved throttle response
✅ Extended Tip Compressor Technology for increased efficiency and power
✅ Forged and milled components for durability under high boost
✅ Multiple housing options for tailored performance in race or street builds

⚡ Perfect for diesel and gas high-performance applications seeking the perfect balance of power, responsiveness, and durability.

Ready to step up your build? The Stainless Diesel S467 FMW Turbocharger is engineered to push limits—bolt it on and feel the difference.
