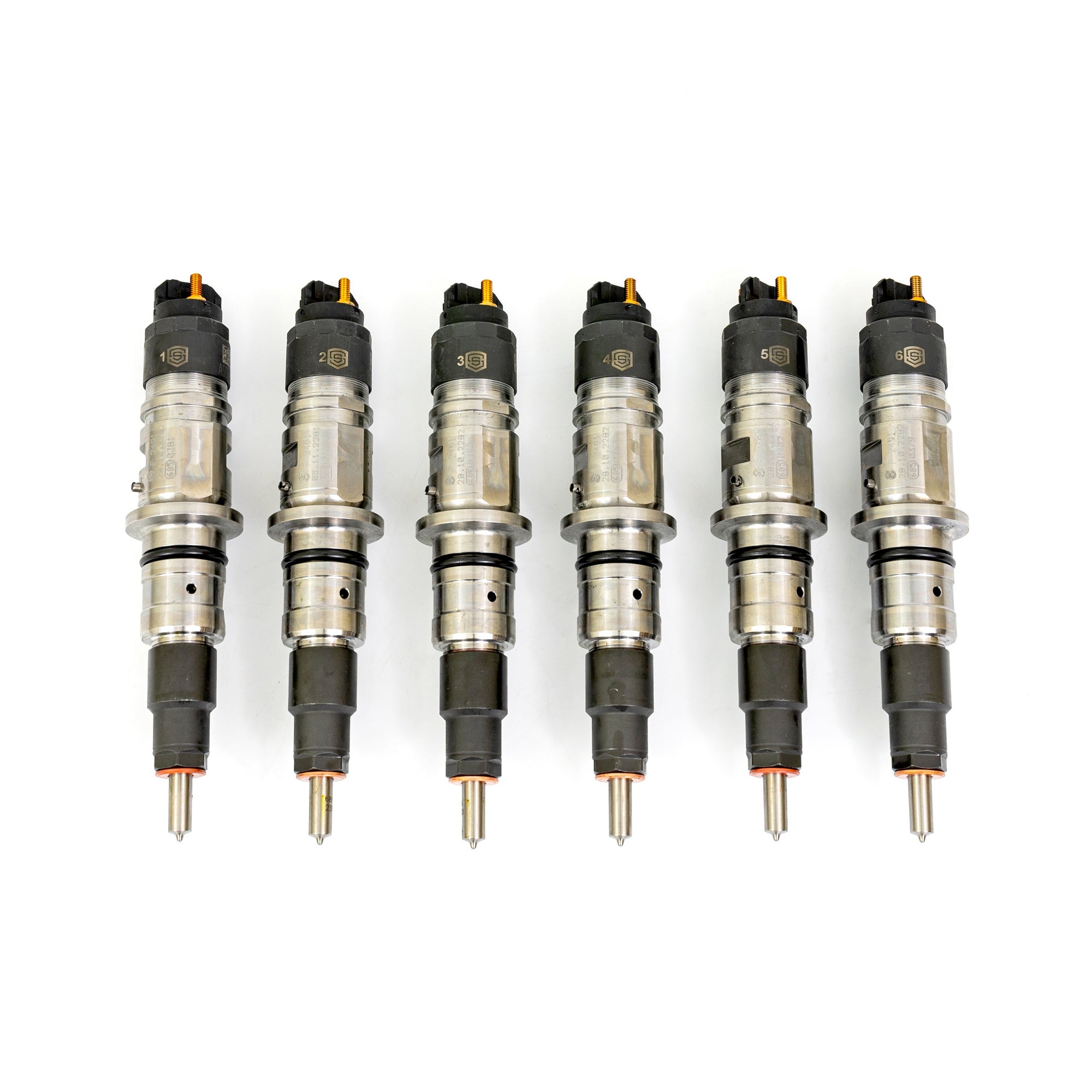

S&S Diesel - 6.7C TorqueMaster Injector - New

S&S Upgrade Benefits

SAC nozzles for all sizes (except TorqueMaster)
Proprietary nozzle honing process for clean and consistent holes
Nozzles flow-matched to 1% variance per set, using OE standards
Viscor SAE-J967
40 degrees C
100 bar
Injectors flow-matched to 3% variance per set
Viscor SAE-J967
40 degrees C
4 different pressure/energizing points per injector
Injection profiles (rate shape) aligned
Injector build spec custom-matched to nozzle flow rate for each size
250% (3700 cc/min) and up feature internal body modifications
Increased nozzle flow slows down the open/closing time
Body modifications improve the injection rate shape

Options

Brand new or Bosch remanufactured bodies available
We only use reman bodies direct from Bosch for quality purposes, which differ from Bosch-certified remans
The industry has adopted a % increase in nozzle flow over stock as the sizing convention
Available sizes: TorqueMaster, 20%, 40%, 60%, 80%, 100%, 150%, 200%, 250%, 300%, 350%, 400%, 450%, 500%

Core returns required – $150 charge if no core returned.
