Max Air Flow Bundle for 2004.5-2005 LLY Duramax

HSP 2004.5-2005 Chevrolet / GMC Max Air Flow Bundle

Part Number: 283-HSP

The HSP Max Air Flow Bundle is designed for 2004.5-2005 LLY Duramax-equipped Chevrolet and GMC trucks. This kit includes nearly everything HSP Diesel offers for these trucks, making it a powerful upgrade right out of the box.

What Is the HSP Max Air Flow Bundle for the LLY?

This bundle is ideal for those who want significant performance gains without piece-mealing components. It replaces key bottlenecks in the factory setup and is designed to boost airflow, power, and efficiency in a single upgrade package.

Cold Air Intake

The 4.5" LBZ-style Cold Air Intake brings in maximum airflow and reduces intake temperatures. Coupled with HSPs heat shield box, it prevents hot engine bay air from entering. Tests show every 1°F increase in intake temperature results in an average 3 HP loss, so keeping temps down is critical.

Max Flow Intake Mouthpiece

Handcrafted for optimal flow and efficiency, this mouthpiece allows for a factory PCV reroute and eliminates the stock resonator box. This reduces oil contamination in the turbo and intake tract. (PCV kit sold separately: see 003-1-HSP.)

Hot Side Intercooler Tube

Stock tubes often fail due to poor routing and rubbing against the power steering line. HSP resolves this by redesigning the routing and increasing the diameter to a 3" mandrel-bent tube for improved flow and reduced turbulence.

Max Flow Bridge & Cold Side Tube

The 3" two-piece Max Flow Bridge and matching Cold Side Tube increase charge air flow and ease installation. This combo minimizes boost leaks and maintains consistent pressure throughout the system.

2" Passenger Side Up-Pipe

Constructed from heavy-wall 304 stainless steel and fitted with heavy-duty sleeved bellows, this upgraded up-pipe provides superior durability and smoother flow over stock designs.

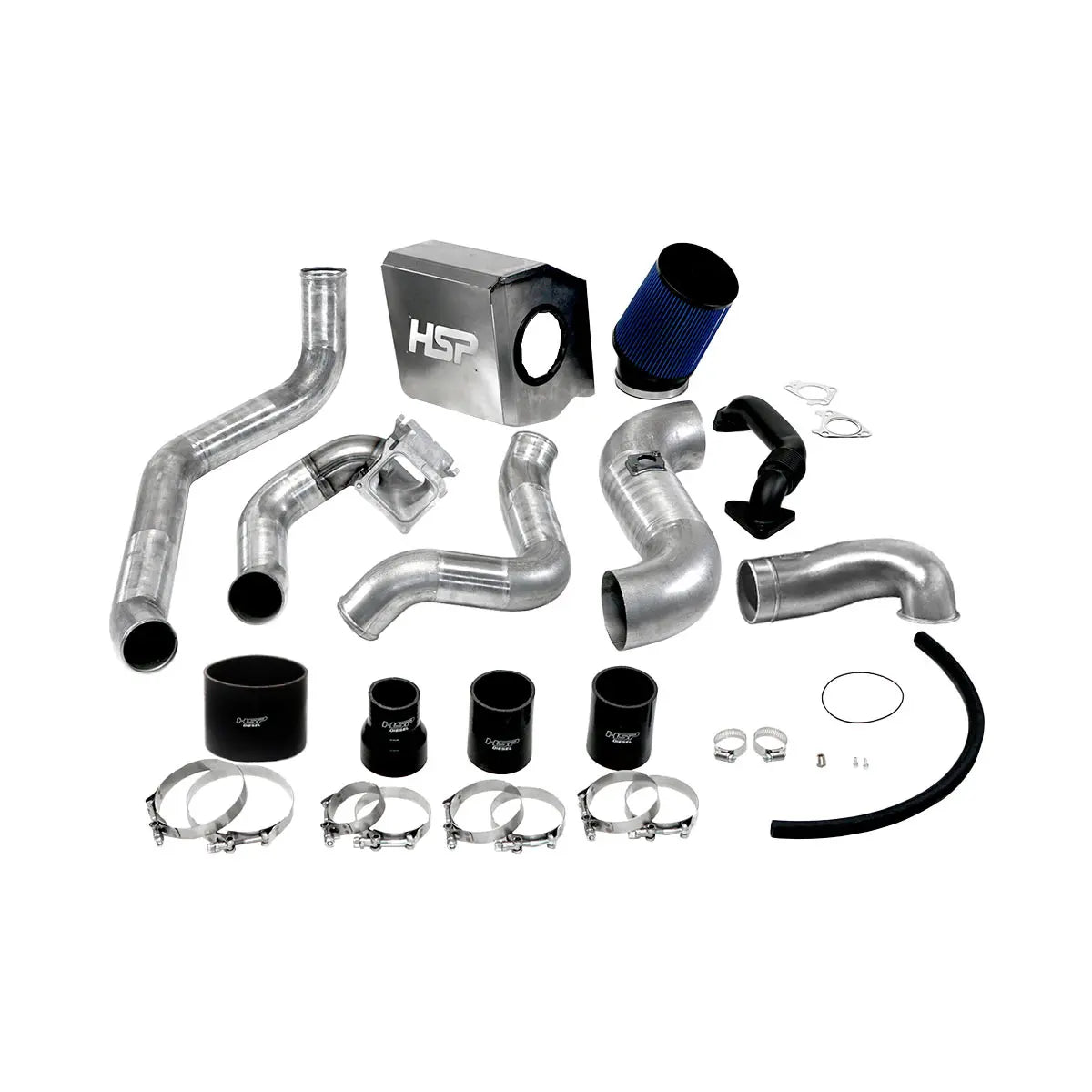

What's Included:

• 1x Hotside Tube (HSP-IN-207)
• 1x Bridge Neck (HSP-IN-209)
• 1x Bridge (HSP-IN-222)
• 1x Coldside Tube (HSP-IN-213)
• 1x 4.5" Cold Air Intake Tube (HSP-IN-150-1)
• 1x 4.5" Hole Heatshield Box (HSP-IN-748)
• 1x Heatshield Box Lid (HSP-IN-746)
• 1x Fabricated Turbo Inlet (HSP-IN-216-1)
• 1x 2" Stock Replacement Up Pipe - Passenger - Ceramic Coated (HSP-IN-280-C)
• 1x 4.5" Filter (RFB-413-RFAB)
• 1x Bridge Neck O-Ring (RFB-670-RFAB)
• 1x 1/8'' NPT Brass Plug (RFB-811-RFAB)
• 2x Bridge Neck Stud (RFB-902-RFAB)
• 2x Bridge Neck 12-Point Nut (RFB-903-RFAB)
• 4x 1/8" Aluminum Rivet (RFB-098-RFAB)
• 3x 10-32 x 3/8" Button Head Screws (RFB-099-RFAB)
• 16x Trim Lock (RFB-411-RFAB)
• 1x Heatshield Box Lid Backer Plate (RFB-746-BP-RFAB)
• 2x M4x.7x10mm Bolt (RFB-901-RFAB)
• 2x 4.5" T-Bolt Clamp (RFB-435-RFAB)
• 1x 4.5" X 4" Straight Boot (RFB-444-RFAB)
• 1x 2.25" T-Bolt Clamp (RFB-420-RFAB)
• 3x 3" T-Bolt Clamp (RFB-422-RFAB)
• 1x 3"x4" Straight Boot (RFB-430-RFAB)
• 1x 2.25" to 3" Reducer Boot (RFB-441-RFAB)
• 1x Up-pipe Gasket (Turbo Side) (RFB-821-RFAB)
• 1x Up-Pipe Gasket (Manifold Side) (RFB-822-RFAB)
• 1x Turbo Inlet O-Ring (RFB-628-RFAB)
• 24x 5/8" Heater Hose (RFB-401-RFAB)
• 2x 5/8" Worm Gear Clamp (RFB-403-RFAB)
• x 3" T-Bolt Clamp (RFB-422-RFAB)
• 1x 3"x4" Straight Boot (RFB-430-RFAB)

Vehicle Fitment:

• LLY: 2004.5-2005 (VIN Code 2)

How to verify: The 8th character of your VIN identifies the engine. The 10th character identifies the model year.

Overview:

• Increased performance
• High-flow cold air intake
• 3" diameter hot and cold side tubes
• High-strength 5-layer silicone boots
• Powder coat options for a clean look under the hood
• Bundle kit saves you money
