Intercooler Charge Pipe Bundle For 2006-2010 LBZ / LMM Duramax

HSP 2006-2010 Chevrolet / GMC Intercooler Charge Pipe Bundle

Part Number: 082-HSP

The HSP Intercooler Charge Pipe Bundle is designed for the 2006-2010 Duramax-equipped Chevrolet and GMC trucks. It delivers both aesthetic enhancements and performance improvements in one streamlined kit.

What Is the HSP Intercooler Charge Pipe Bundle?

This bundle was created to offer a comprehensive solution that benefits everyday drivers and performance enthusiasts alike. It includes both the hot and cold side tubes, ensuring a matching look and optimized airflow for your truck.

Max Flow Bridge and Cold Side Tube

The Max Flow Bridge is a 3" CNC-machined two-piece bridge section. This design ensures a perfect fit, better than factory mating surfaces, and easy installation. It features two M8 studs and 12-point nuts, along with a high-strength O-ring that seals tight and prevents boost leaks. Its been pressure tested to over 100 PSI. The cold side tube is a 3" mandrel-bent pipe that minimizes turbulence and maximizes airflow, delivering noticeable gains in throttle response and efficiency.

Hot Side Intercooler Tube

The factory hot side pipe is known to be restrictive and prone to failure. HSPs replacement uses mandrel bends for smoother airflow up to 40% improvement reducing turbulence and lowering intake temperatures. The result is better power, sound, and durability.

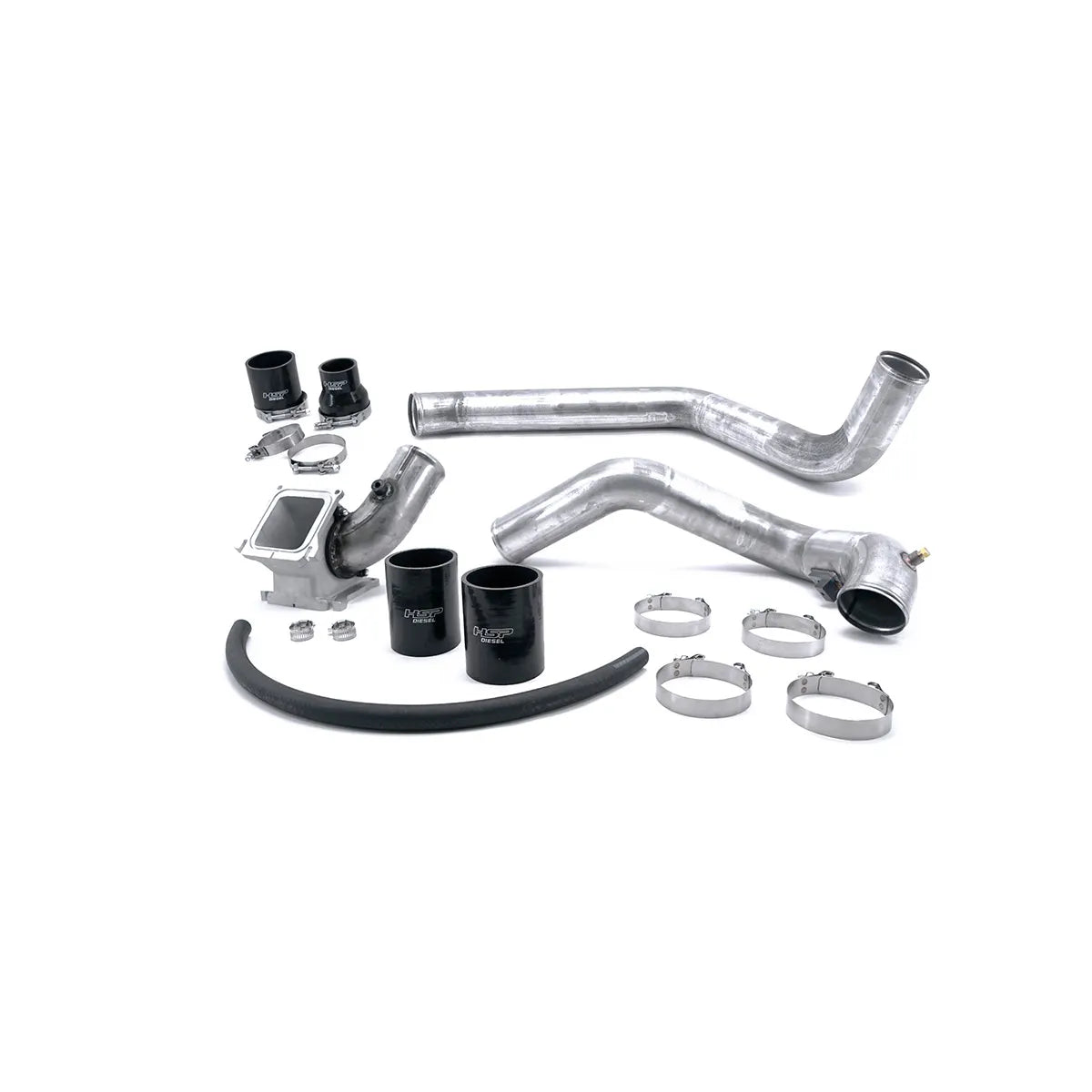

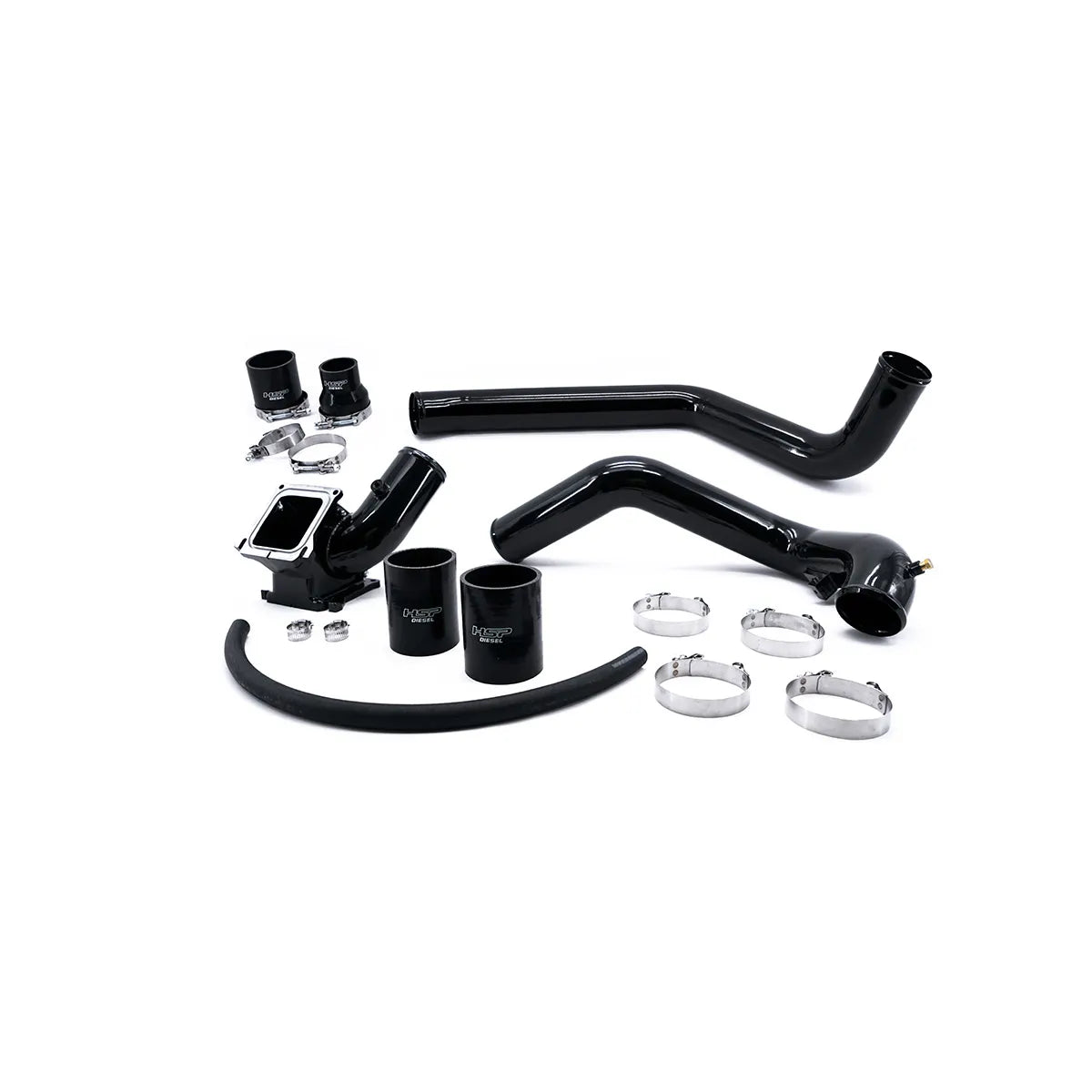

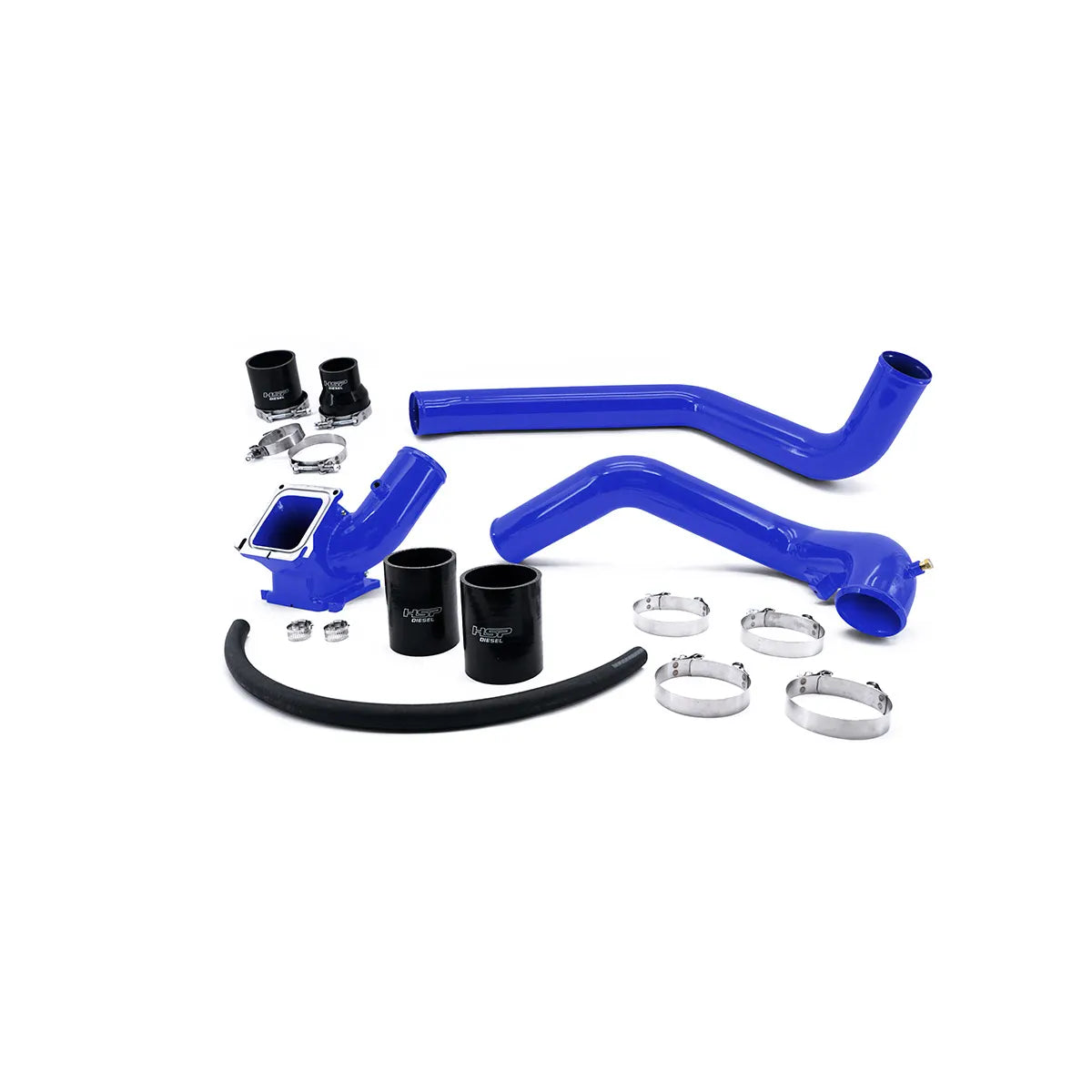

What's Included:

• 1x Hotside Tube (HSP-IN-207)
• 1x Bridge Section (HSP-IN-220)
• 1x Bridge Neck (HSP-IN-743-2)
• 1x Coldside Behind Alt (HSP-IN-202)
• 1x Bridge Neck O-Ring (RFB-670-RFAB)
• 1x 1/8'' NPT Brass Plug (RFB-811-RFAB)
• 2x Bridge Neck Stud (RFB-902-RFAB)
• 2x Bridge Neck 12-Point Nut (RFB-903-RFAB)
• 1x 2.25" T-Bolt Clamp (RFB-420-RFAB)
• 3x 3" T-Bolt Clamp (RFB-422-RFAB)
• 1x 3"x4" Straight Boot (RFB-430-RFAB)
• 1x 2.25" to 3" Reducer Boot (RFB-441-RFAB)
• 24x 5/8" Heater Hose (RFB-401-RFAB)
• 2x 5/8" Worm Gear Clamp (RFB-403-RFAB)
• 4x 3" T-Bolt Clamp (RFB-422-RFAB)
• 2x 3"x4" Straight Boot (RFB-430-RFAB)

Fitment:

• LBZ: 2006-2007 (VIN Code 2 or D)
• LMM: 2007.5-2010 (VIN Code 6)

How to verify: The 8th character of your VIN identifies the engine. The 10th character indicates the model year.

Overview:

• Increased performance and turbo spool-up
• Precision CNC-machined bridge section with port matching
• Improved fitment and ease of installation
• Mandrel-bent tubing for optimized airflow
• Straight intercooler entrance to prevent failures
• Up to 40% increase in airflow over stock
• High-strength silicone boots
• Custom powder coat options to match your build
