Intercooler Charge Pipe Bundle For 2004.5-2005 LLY Duramax

HSP 2004.5-2005 Chevrolet / GMC Intercooler Charge Pipe Bundle

Part Number: 282-HSP

This bundle is designed for the LLY Duramax-equipped 2004.5-2005 Chevrolet and GMC trucks. The Intercooler Charge Pipe Bundle is one of the best starting points when modifying your LLY Duramax for both performance and reliability.

What Is the HSP Intercooler Charge Pipe Bundle for the LLY?

This kit is the ideal first-step upgrade for stock or lightly modified trucks. Whether you're chasing performance gains, replacing worn stock parts, or adding powder-coated style to your engine bay, this bundle fits the bill.

Hot Side Intercooler Tube

The factory hot side tube on the LLY is notorious for failure most often where it rubs against the power steering line, leading to boost leaks. HSP solves this by rerouting the tube directly into the intercooler for better clearance and less turbulence. Constructed from 3" mandrel-bent tubing, it not only improves airflow but also enhances visual appeal with powder coat options.

Max Flow Bridge & Cold Side Tube

The Max Flow Bridge is a precision-cast aluminum piece CNC machined for maximum airflow. It features a 3" two-piece design, allowing easy installation and pressure testing to over 100 PSI. The cold side tube is also 3" in diameter and mandrel-bent to reduce turbulence and improve system efficiency. Together, these components create a smooth, high-volume charge air path.

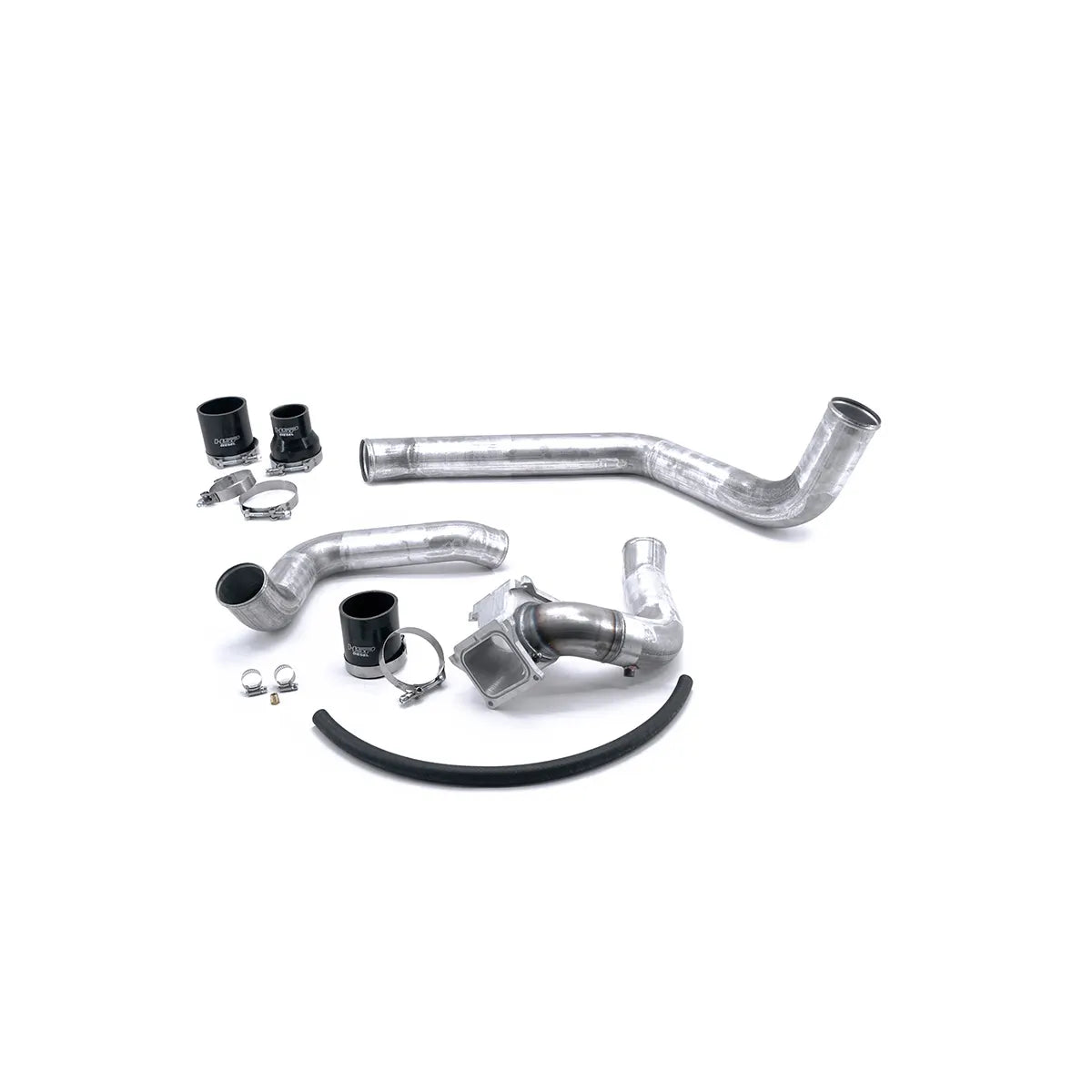

What's Included:

• 1x Hotside Tube (HSP-IN-207)
• 1x Bridge Neck (HSP-IN-209)
• 1x Bridge (HSP-IN-222)
• 1x Coldside Tube (HSP-IN-213)
• 1x Bridge Neck O-Ring (RFB-670-RFAB)
• 1x 1/8'' NPT Brass Plug (RFB-811-RFAB)
• 2x Bridge Neck Stud (RFB-902-RFAB)
• 2x Bridge Neck 12-Point Nut (RFB-903-RFAB)
• 1x 2.25" T-Bolt Clamp (RFB-420-RFAB)
• 3x 3" T-Bolt Clamp (RFB-422-RFAB)
• 1x 3"x4" Straight Boot (RFB-430-RFAB)
• 1x 2.25" to 3" Reducer Boot (RFB-441-RFAB)
• 24x 5/8" Heater Hose (RFB-401-RFAB)
• 2x 5/8" Worm Gear Clamp (RFB-403-RFAB)
• 2x 3" T-Bolt Clamp (RFB-422-RFAB)
• 1x 3"x4" Straight Boot (RFB-430-RFAB)

Vehicle Fitment:

• LLY: 2004.5-2005 (VIN Code 2)

How to verify: The 8th character of your VIN identifies the engine. The 10th character identifies the model year.

Special Note:

This kit is best suited for factory or drop-in replacement chargers, as it retains the stock intercooler routing.

Overview:

• Pressure tested to 100 PSI
• 3" Mandrel-bent aluminum tubing
• Precision cast and CNC-machined Max Flow Bridge
• Boosts power and airflow
• Powder coat options for style
• Ideal for stock turbochargers or mild upgrades
