HSP Max Flow Y-Bridge & Cold Side Tube for LBZ & LMM Duramax (2006-2010)

The HSP Max Flow Y-Bridge and Cold Side Tube Kit is a performance upgrade for 2006-2010 Chevrolet and GMC Duramax LBZ and LMM trucks. This complete HSP Y-Bridge kit combines a precision-built Y-bridge with a mandrel-bent cold side intercooler tube to reduce factory restrictions and improve airflow, reliability, and overall performance.

Why You Need an HSP Y-Bridge for LBZ & LMM Duramax

The factory Duramax Y-bridge is known for restrictive airflow, inconsistent sealing, and boost leaks that limit performance. The HSP Y-Bridge for LBZ and LMM Duramax engines was designed to correct these issues by improving airflow efficiency while maintaining OEM-style fitment.

What Makes the HSP Max Flow Y-Bridge Kit Different?

The HSP Y-Bridge features a 3-inch, two-piece CNC-machined design that simplifies installation while delivering consistent airflow and reliable sealing. Each bridge is hand-fit and sealed using an O-ring and dual M8 studs, allowing it to hold over 100 PSI of boost without failure.

Paired with the bridge is a 3-inch mandrel-bent cold side intercooler tube routed behind the alternator. This design reduces turbulence, improves turbo spool-up, and enhances throttle response while maintaining a factory-style engine bay layout.

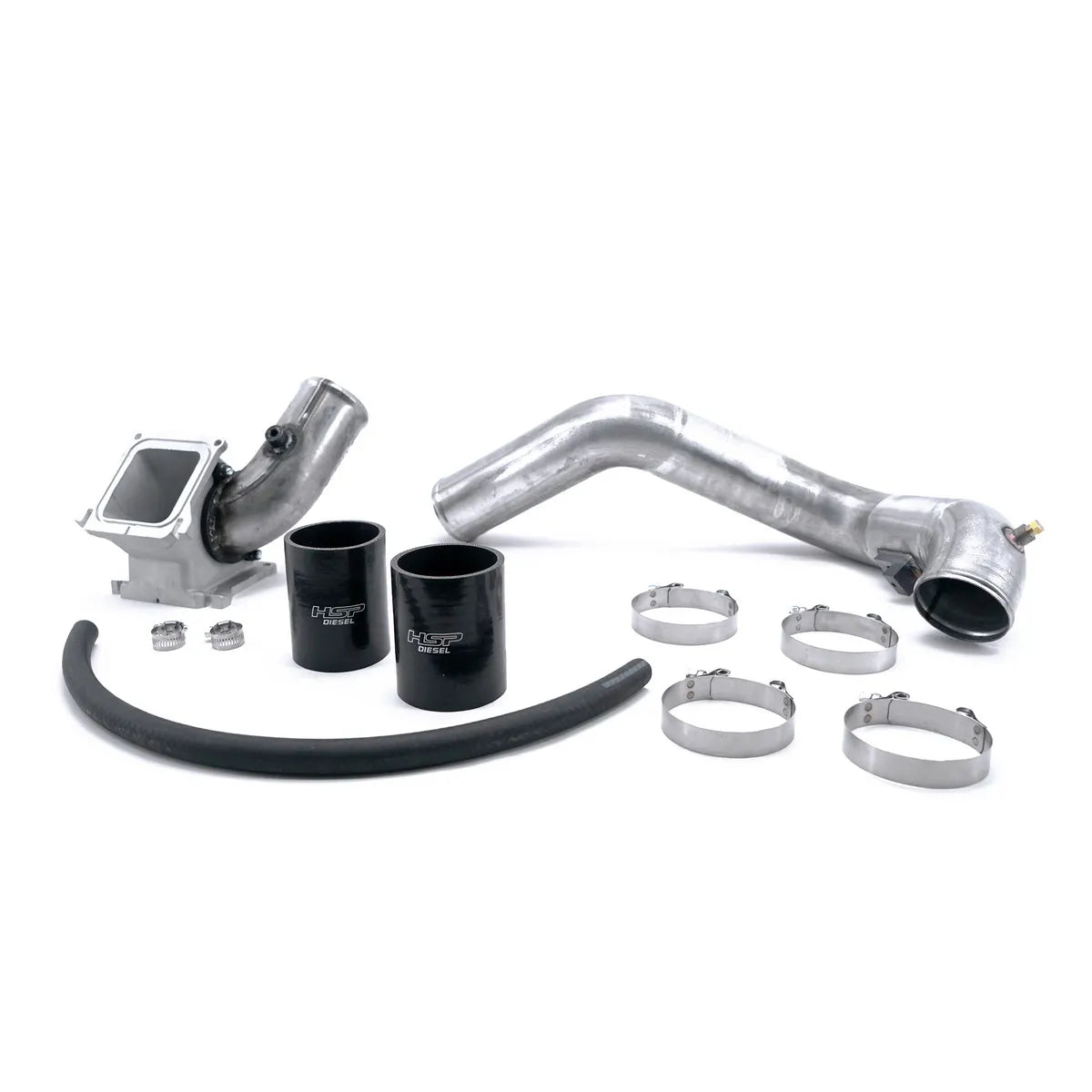

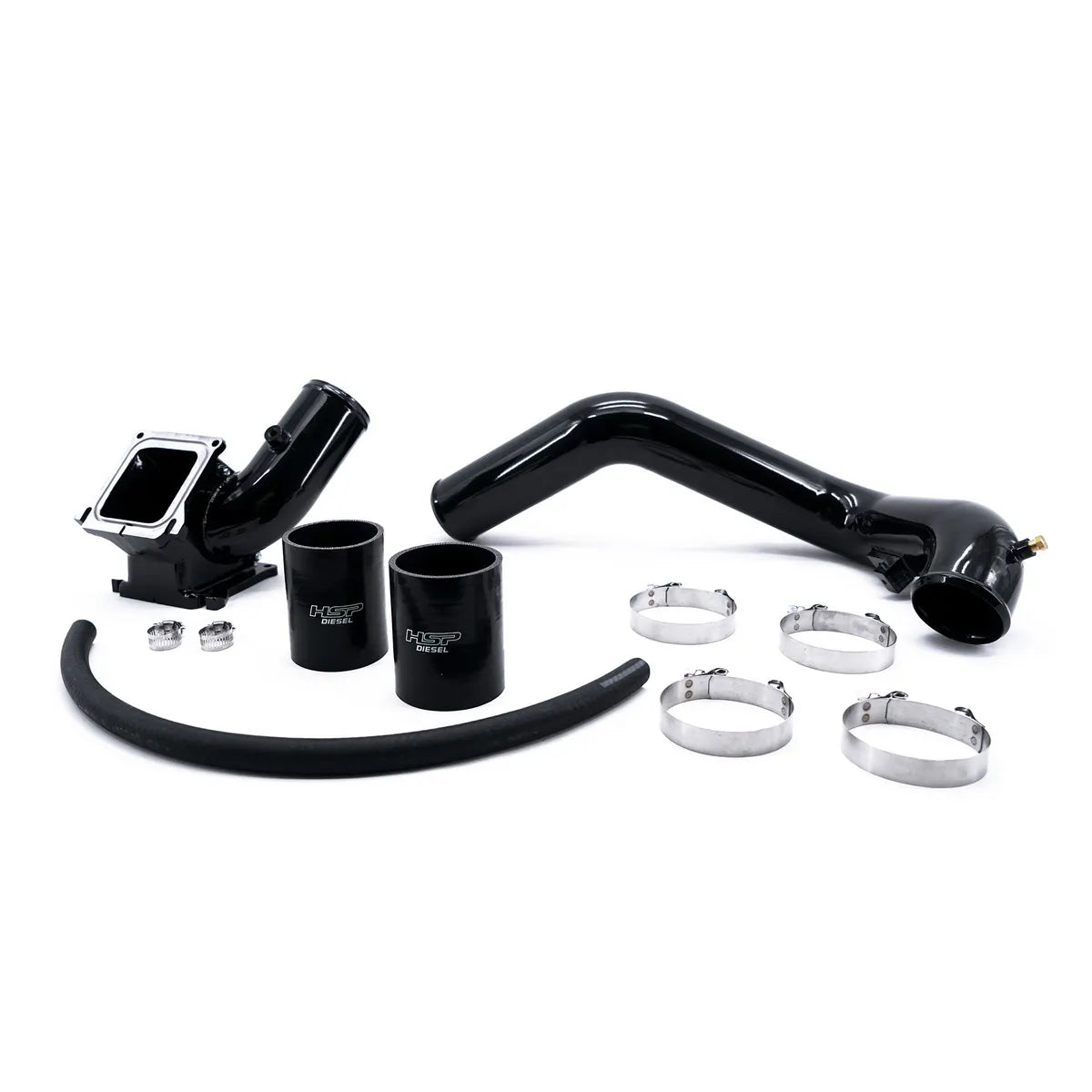

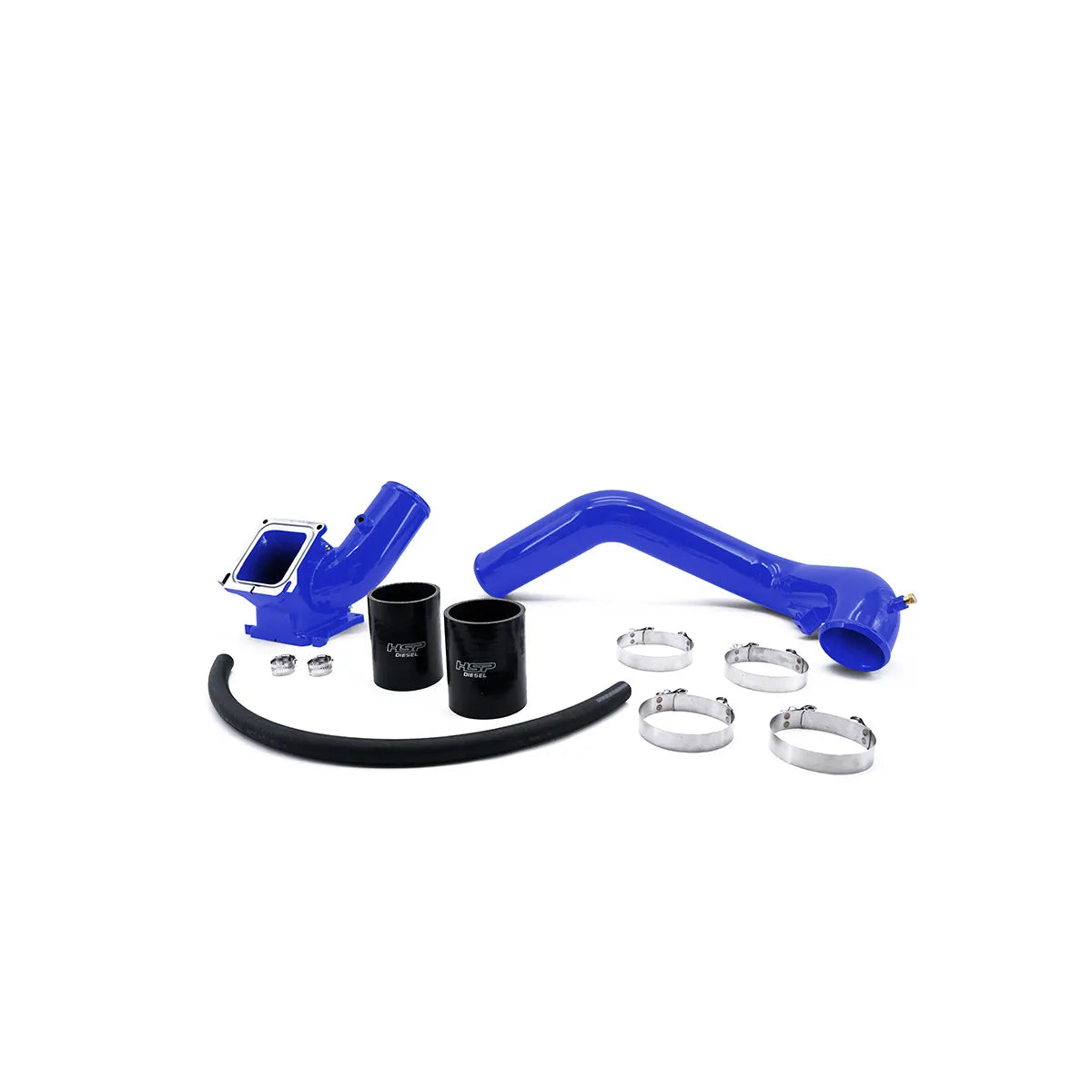

What's Included in the HSP Y-Bridge Kit

• 1x Bridge Section (HSP-IN-220)
• 1x Cold Side Tube Behind Alternator (HSP-IN-202)
• 1x Bridge Neck (HSP-IN-743-2)
• 1x Bridge Neck O-Ring (RFB-670-RFAB)
• 1x 1/8" NPT Brass Plug (RFB-811-RFAB)
• 2x Bridge Neck Studs (RFB-902-RFAB)
• 2x Bridge Neck 12-Point Nuts (RFB-903-RFAB)
• 24" 5/8" Heater Hose (RFB-401-RFAB)
• 2x 5/8" Worm Gear Clamps (RFB-403-RFAB)
• 4x 3" T-Bolt Clamps (RFB-422-RFAB)
• 2x 3"x4" Straight Silicone Boots (RFB-430-RFAB)

Fitment – LBZ & LMM Duramax

• LBZ: 2006-2007 (VIN Code 2 or D)
• LMM: 2007.5-2010 (VIN Code 6)

Note: Engine code is the 8th character of the VIN; model year is the 10th character.

Overview

• Increased airflow and performance
• Faster turbo spool-up
• Two-piece Y-bridge design for improved fitment
• Mandrel-bent cold side tube to reduce turbulence
• 3-inch diameter piping throughout
• Multiple color and custom coating options
• Factory-style routing compatible with drop-in turbochargers

Special Note

This Y-Bridge and cold side tube kit is best suited for factory or drop-in replacement turbochargers, as it follows OEM-style intercooler routing.
