HSP Diesel Intercooler Charge Pipe Bundle for 2011-2016 Chevrolet and GMC LML Duramax

HSP 2011-2016 Chevrolet / GMC Intercooler Charge Pipe Bundle

Part Number: 582-HSP

The 582-HSP is best known as the Intercooler Charge Pipe Bundle for LML Duramax-equipped 2011-2016 Chevrolet and GMC trucks. This bundle is a great package for anyone looking to increase performance and efficiency with proven HSP Diesel engineering.

What Is the Intercooler Charge Pipe Bundle for the LML?

The LML Duramax platform is extremely capable but often limited by restrictive or failure-prone factory parts. HSP Diesel created this kit to replace the major weak points and unlock your trucks true potential in one streamlined bundle.

Hot Side Tube

The OEM hot side pipe uses a two-piece design that is known to fail. HSPs upgraded version features a single-piece, mandrel-bent 3" aluminum pipe with high-strength silicone boots on both ends. The result: improved airflow (up to 40%) and durability.

Cold Side Tube

Although less likely to fail, the factory cold side pipe still poses a restriction. HSPs 3" mandrel-bent upgrade reduces turbulence and improves charge air flow especially when paired with the Max Flow Bridge and VGT Mouthpiece in this kit.

Max Flow Bridge

This two-piece CNC-machined bridge uses an O-ring-sealed center to virtually eliminate boost leaks. Designed for seamless fitment and maximum airflow, it completes the cold side system while offering reliability and easy installation.

VGT Intake Mouthpiece

Hand-fabricated with optimized bends and transitions, this intake mouthpiece improves turbo efficiency by reducing turbulence and increasing flow into the compressor housing.

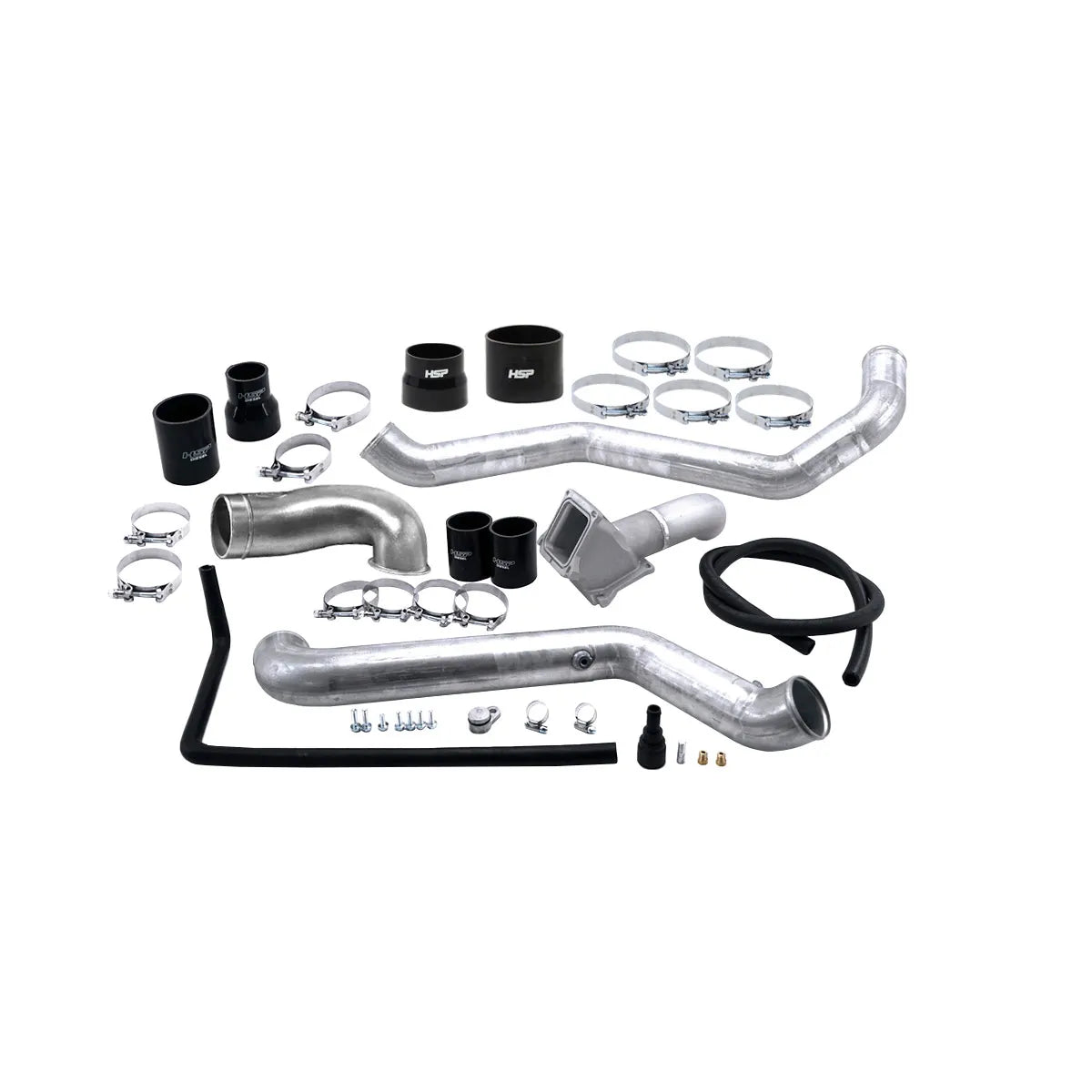

Whats Included:

• 1x Hotside Tube (HSP-IN-218)
• 1x Bridge (HSP-IN-223)
• 1x Coldside (HSP-IN-228)
• 1x Fabricated Turbo Inlet (HSP-IN-216-2)
• 1x 1/8" NPT Brass Plug (RFB-811-RFAB)
• 1x M6x1.0x16mm Flange Bolt (RFB-893-RFAB)
• 1x 2.25" T-Bolt Clamp (RFB-420-RFAB)
• 3x 3" T-Bolt Clamp (RFB-422-RFAB)
• 1x 3"x4" Straight Boot (RFB-430-RFAB)
• 1x 2.25" to 3" Reducer Boot (RFB-441-RFAB)
• 1x Duramax Pre-Made Hose - Rubber (RFB-398-RFAB)
• 1x 5/8" Worm Gear Clamp (RFB-403-RFAB)
• 1x 1/2" Worm Gear Clamp (RFB-405-RFAB)
• 60x 5/8" PCV Hose (RFB-407-RFAB)
• 4x 3" T-Bolt Clamp (RFB-422-RFAB)
• 2x 3"x4" Straight Boot (RFB-430-RFAB)
• 1x 3/4" to 5/8" Heater Hose Connector (RFB-462-RFAB)
• 1x 3/8" Coolant Plug - Aluminum (RFB-808-RFAB)
• 1x Rear Cover Coolant Fitting (RFB-809-RFAB)
• 1x Coolant Plug O-Ring (RFB-813-RFAB)
• 2x M6x1.0x25mm Flange Bolt (RFB-896-RFAB)
• 4x M6x1.0x20mm Flange Bolt (RFB-897-RFAB)

Vehicle Fitment:

• LML: 2011-2016 (with HSP Intake ONLY) (8th digit of VIN = 8)

How to Verify: The 8th character of the VIN indicates engine code. The 10th character shows the model year.

Overview:

• Increased performance and throttle response
• Fixes OEM failure-prone two-piece hot side design
• 3" Mandrel-Bent Hot and Cold Side Tubes
• No more crimped-on boots or airflow bottlenecks

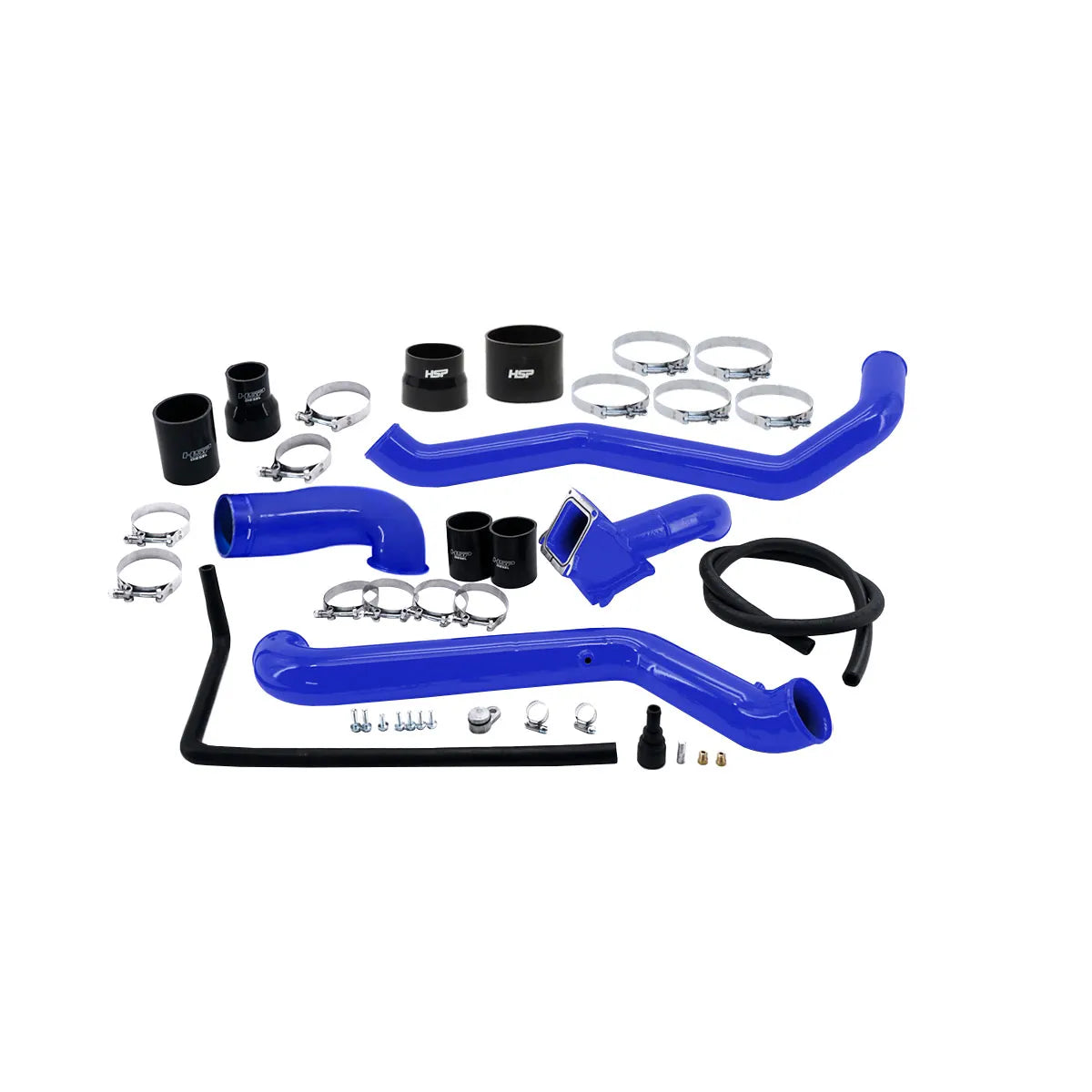

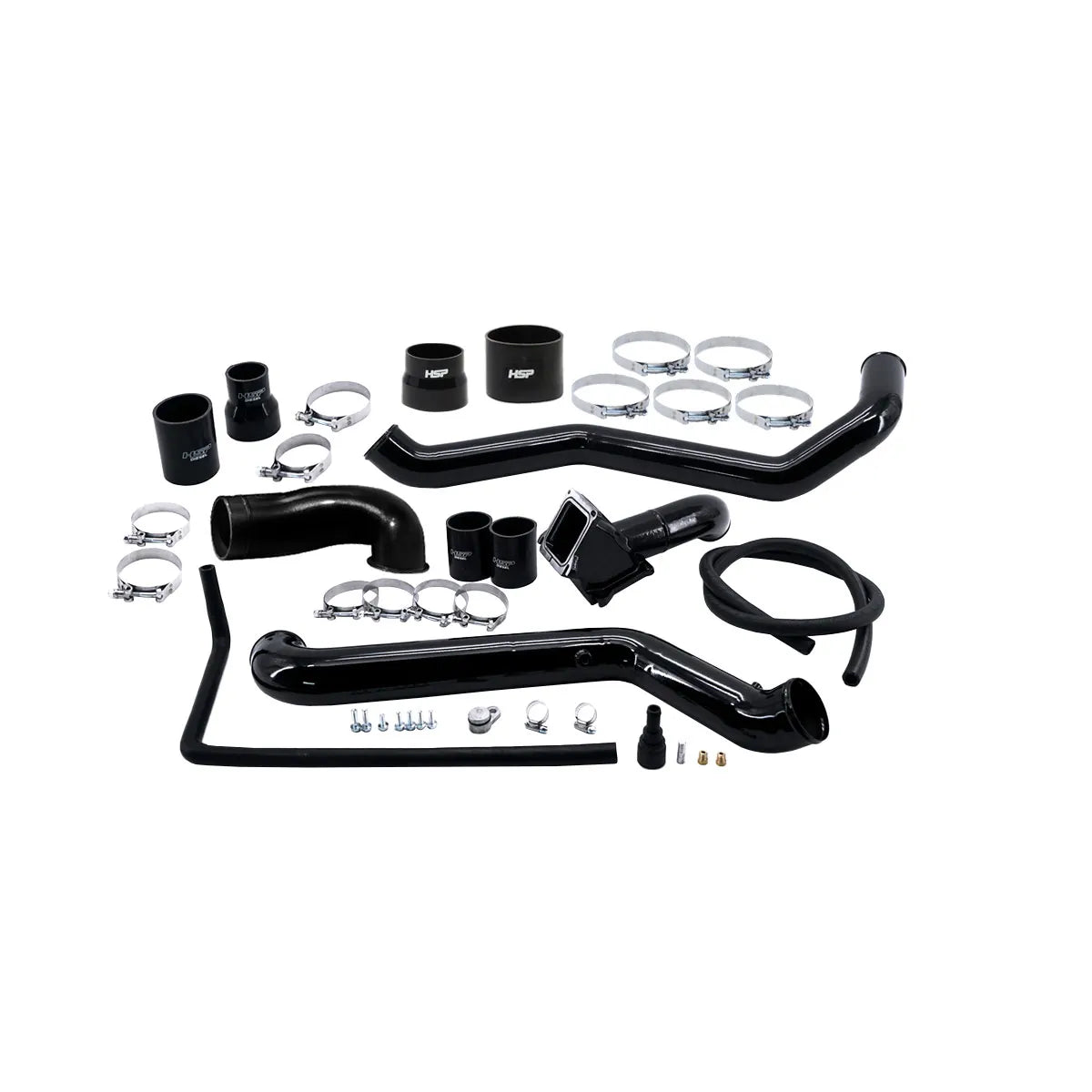

• Powder coat options available
• Bundle pricing delivers better value than buying separately
