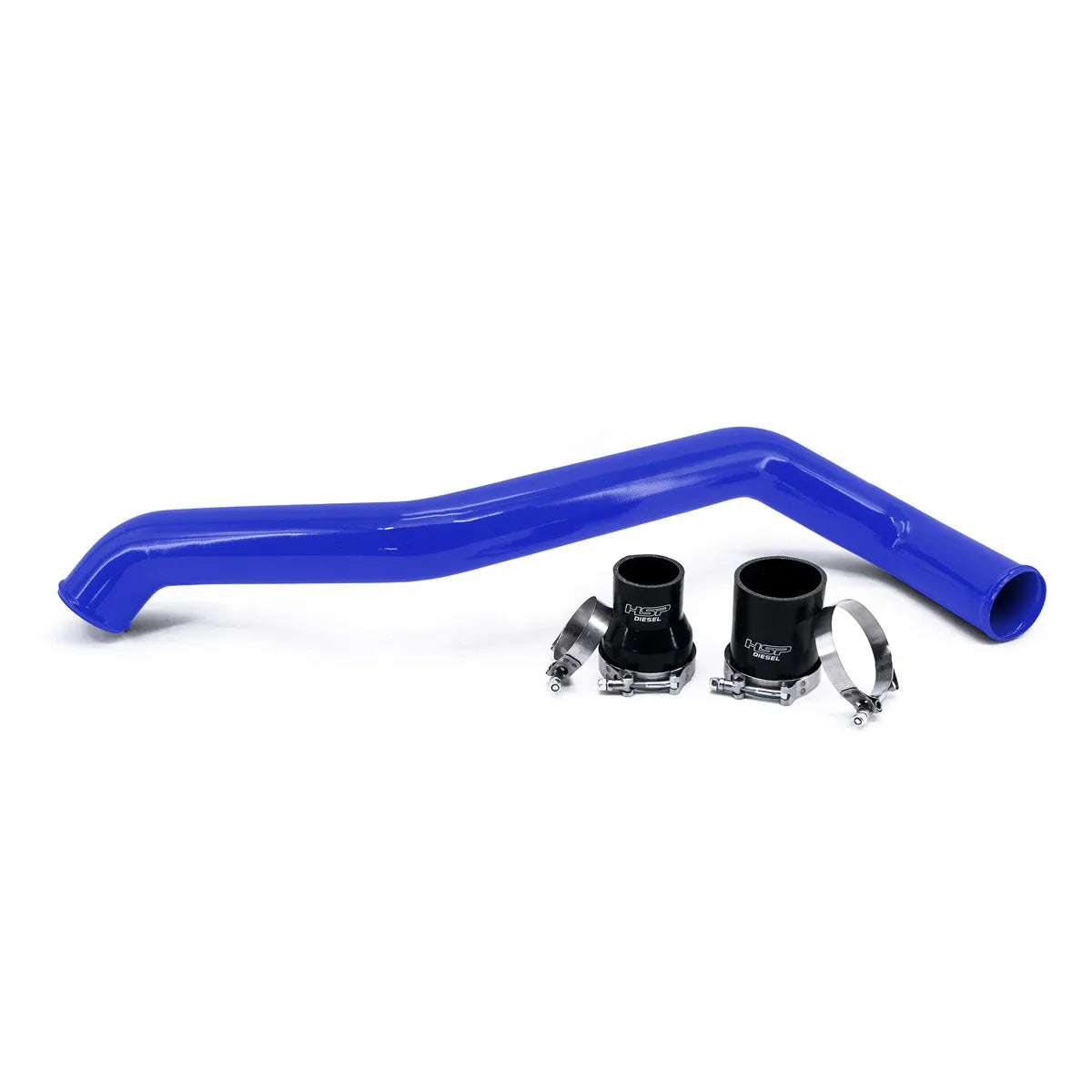

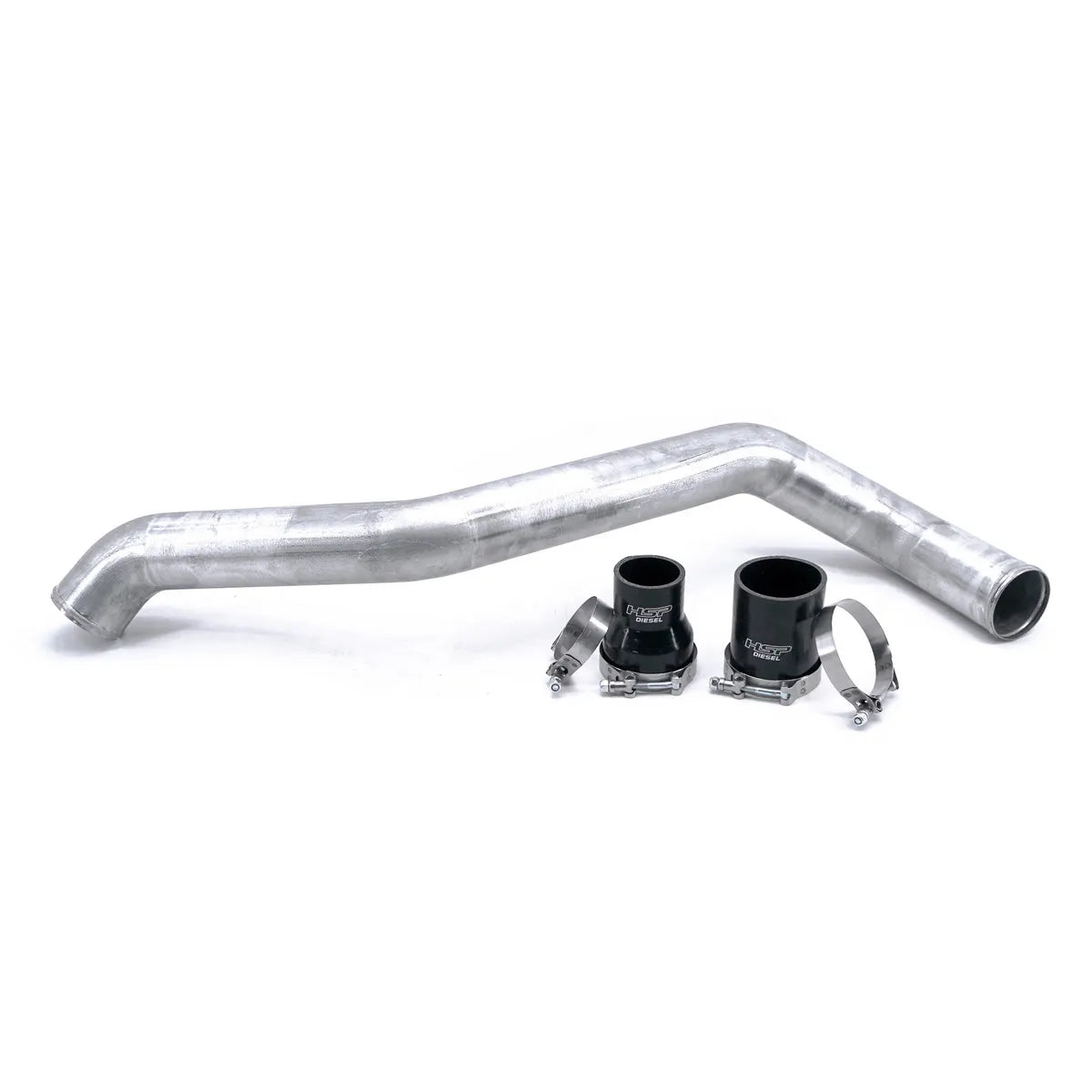

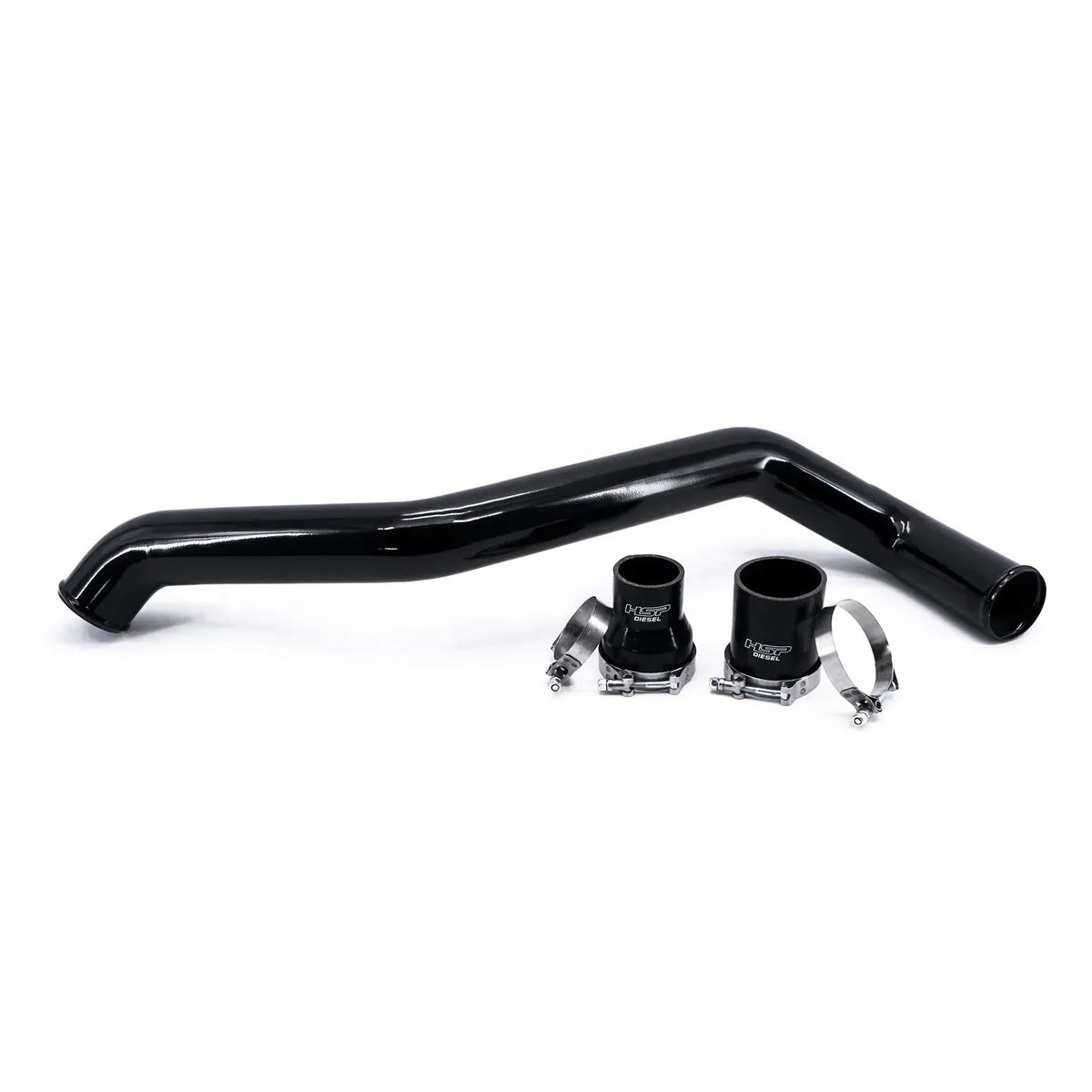

HSP Diesel Hot Side Tube for 2011-2016 Chevrolet and GMC LML Duramax

HSP Hot Side Tube for 2011-2016 Chevrolet / GMC Duramax LML

Part Number: 500-HSP

The 500-HSP, best known as the HSP Hot Side Tube for the 2011-2016 LML Duramax-equipped Chevrolet and GMC trucks, addresses a common failure point and provides a significant upgrade in performance and durability.

Why Choose the HSP Hot Side Tube?

The factory hot side pipe is a notorious weak link on Duramax trucks. When it fails, it can cause serious boost leaks, resulting in power loss and poor drivability, especially under load or while towing. Replacing it with a high-performance alternative is essential to avoid these issues.

What Makes the HSP Hot Side Tube Different?

The HSP Hot Side Tube improves airflow by up to 40% over the factory setup. Constructed from 3" mandrel-bent tubing, it minimizes restriction and turbulence. Unlike the OEM design, HSPs tube uses sweeping, high-flow bends and a straight-through connection to the intercooler. This eliminates the need for the problematic two-piece silicone boot, a known source of boost leaks.

Whats Included

• 1x Hotside Tube (HSP-IN-218)
• 1x 2.25" T-Bolt Clamp (RFB-420-RFAB)
• 3x 3" T-Bolt Clamp (RFB-422-RFAB)
• 1x 3"x4" Straight Boot (RFB-430-RFAB)
• 1x 2.25" to 3" Reducer Boot (RFB-441-RFAB)

Fitment

• LML: 2011+ (VIN Code 8)

Note: The 8th character of the VIN indicates engine code; the 10th character indicates model year.

Overview

• Increased performance and faster spool-up
• Eliminates the restrictive and weak factory two-piece design
• High-strength upgraded silicone boots
• 3" mandrel-bent aluminum construction
• Optional powder coating to match your engine bay

Our Warranty

HSP NO BS LIMITED LIFETIME WARRANTY

At HSP, we believe in our products and stand firmly behind every one that leaves our facility. For years, we've gone above and beyond to take care of our customers and now we've made that promise official. Our No BS Warranty outlines everything you need to know about our process and support.

Click here to read the full HSP Warranty
