Billet Valve Covers for 2001-2004 LB7 Duramax

HSP Billet Valve Covers for 2001-2004 Chevrolet / GMC Duramax LB7

The 146-HSP, also known as the HSP Billet Valve Covers for the 2001-2004 LB7 Duramax-equipped Chevrolet and GMC trucks, are a stunning upgrade for those looking to add serious style and performance under the hood. These valve covers are a showpiece—built for those who want to stand out at the track or a show.

Why Choose the HSP Billet Valve Covers?

While not a required upgrade, the HSP Billet Valve Covers represent the next level of refinement. The factory upper valve covers are basic and dont do justice to a built or visually enhanced LB7 engine. With HSP Diesels lineup of performance and aesthetic parts, it only makes sense to complete the engine bay with covers that match that level of craftsmanship. These billet covers make your setup truly stand out.

What Makes the HSP Billet Valve Covers Different?

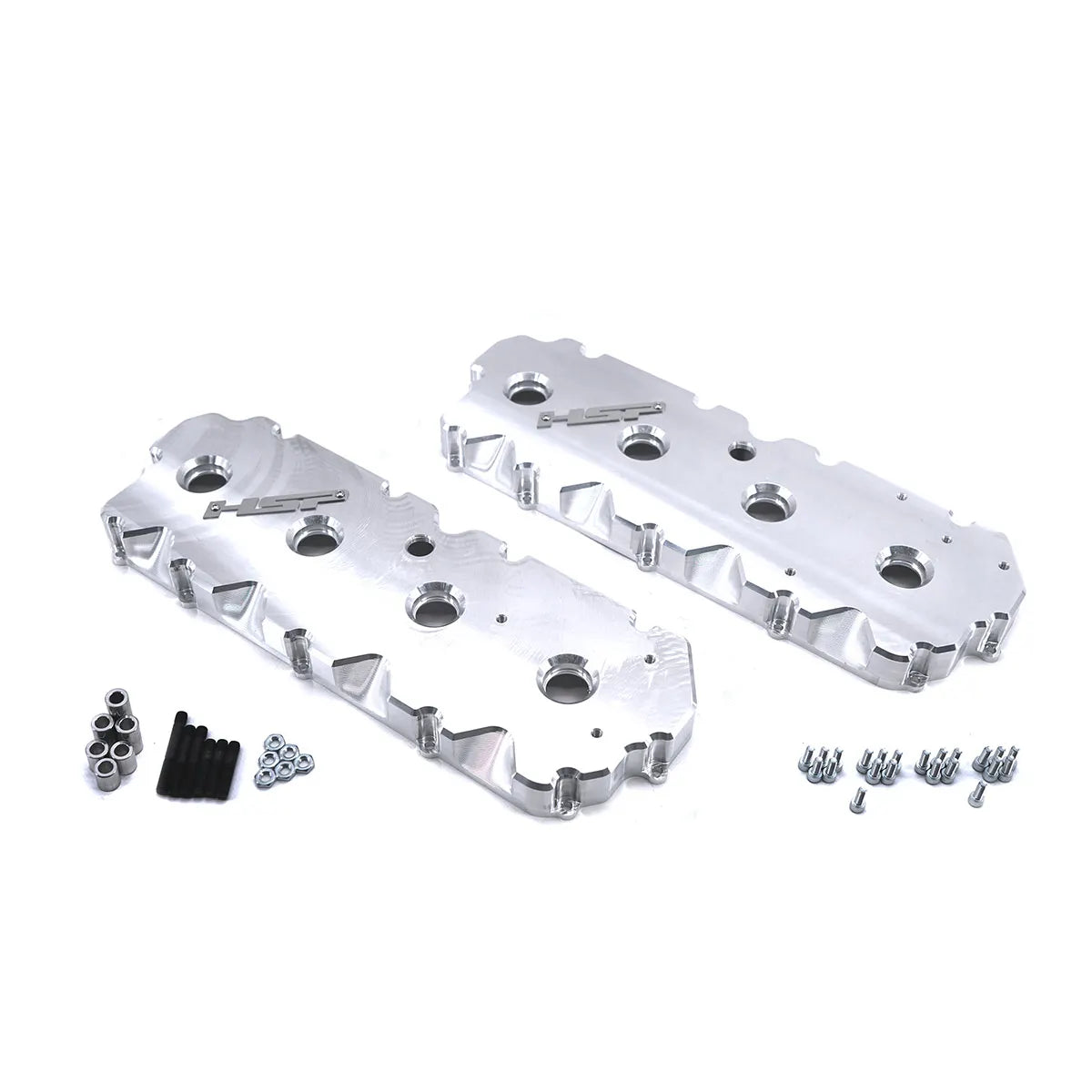

These are the worlds first full billet upper valve covers for the LB7, CNC machined from 6061 T6 aluminum for a perfect fit and unmatched finish. Designed with both looks and function in mind, the covers accommodate the factory FICM location and include a fuel line support bracket. They're also compatible with the HSP Diesel ventilation kit. Powder coating options give you the ability to match or accent your build for that next-level engine bay presence.

Whats Included

• 1x LB7 Billet Valve Cover Passenger Side (HSP-IN-1005)
• 1x LB7 Billet Valve Cover Driver Side (HSP-IN-1006)
• 4x M4-0.7 x 6mm Socket Cap Screw (RFB-093-RFAB)
• 2x Small HSP Logo (Flat) (RFB-752-F-RFAB)
• 22x M6x1.0x16mm Socket Cap Bolts (RFB-206-RFAB)
• 6x M8-1.25 Zinc Finish Steel Jam Nut (RFB-852-RFAB)
• 3x M8x40 Double End Black Stud (RFB-973-RFAB)
• 2x M8x50 Double End Black Stud (RFB-974-RFAB)
• 1x M8x60 Double End Black Stud (RFB-975-RFAB)
• 2x Aluminum Spacer (5/8 OD, .382 ID, 1-1/16 Long) (RFB-976-RFAB)
• 2x Aluminum Spacer (5/8 OD, .382 ID, 1-1/2 Long) (RFB-977-RFAB)
• 2x Aluminum Spacer (5/8 OD, .382 ID, 3/4 Long) (RFB-978-RFAB)
• 1x Aluminum Spacer (5/8 OD, .382 ID, 11/16 Long) (RFB-979-RFAB)

Fitment

• LB7: 2001-2004 (VIN Code 1)

How to identify VIN Code: The 8th character of the VIN identifies the engine code. The 10th character denotes the model year.

Special Notes

• Recommended for use with HSP Diesels forward-facing thermostat housing, as there are no provisions to mount factory hardware to the valve covers.
• These covers no longer include O-rings. Grey RTV is recommended for proper sealing.

Overview

• Billet 6061 T6 Aluminum Construction
• Precision CNC Machined

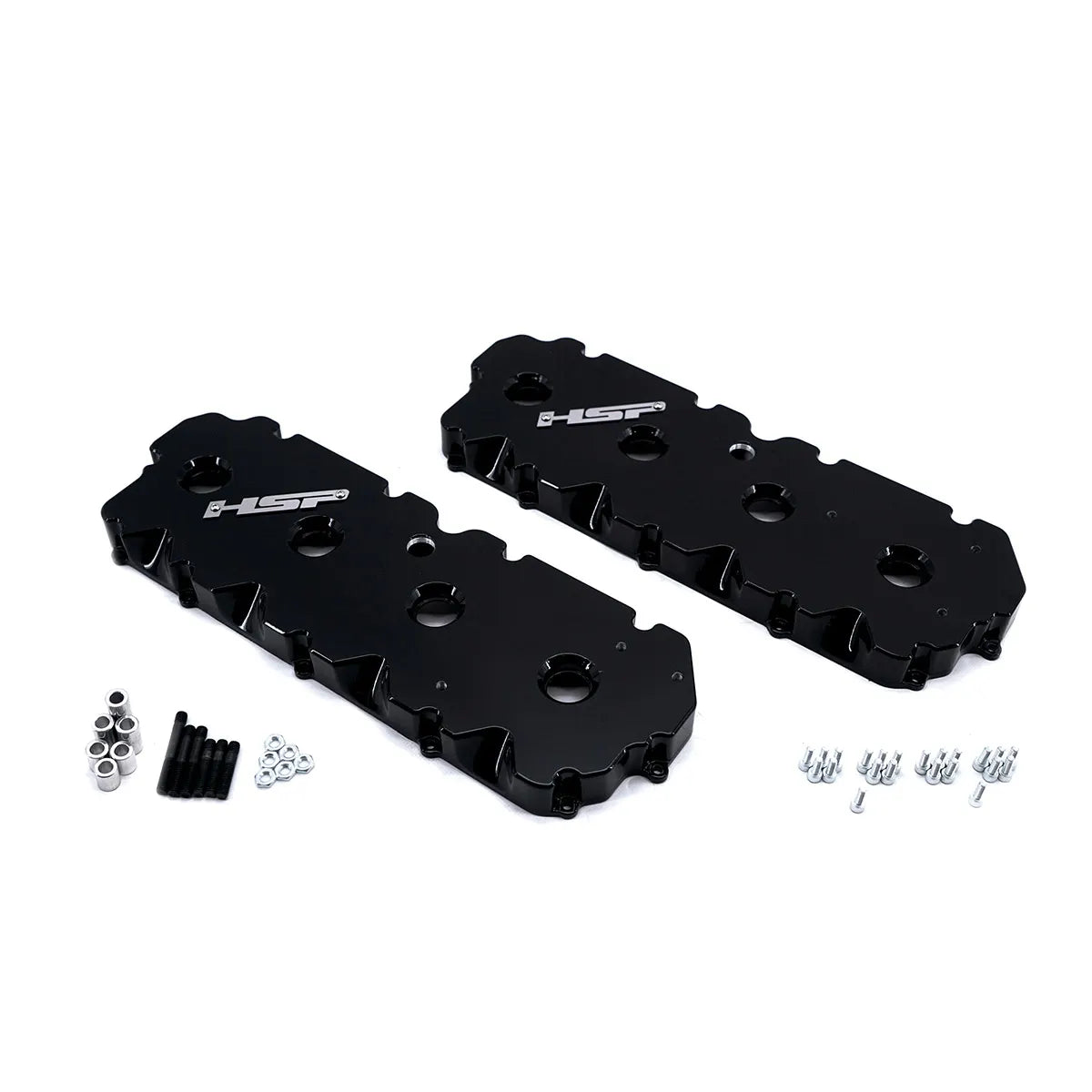

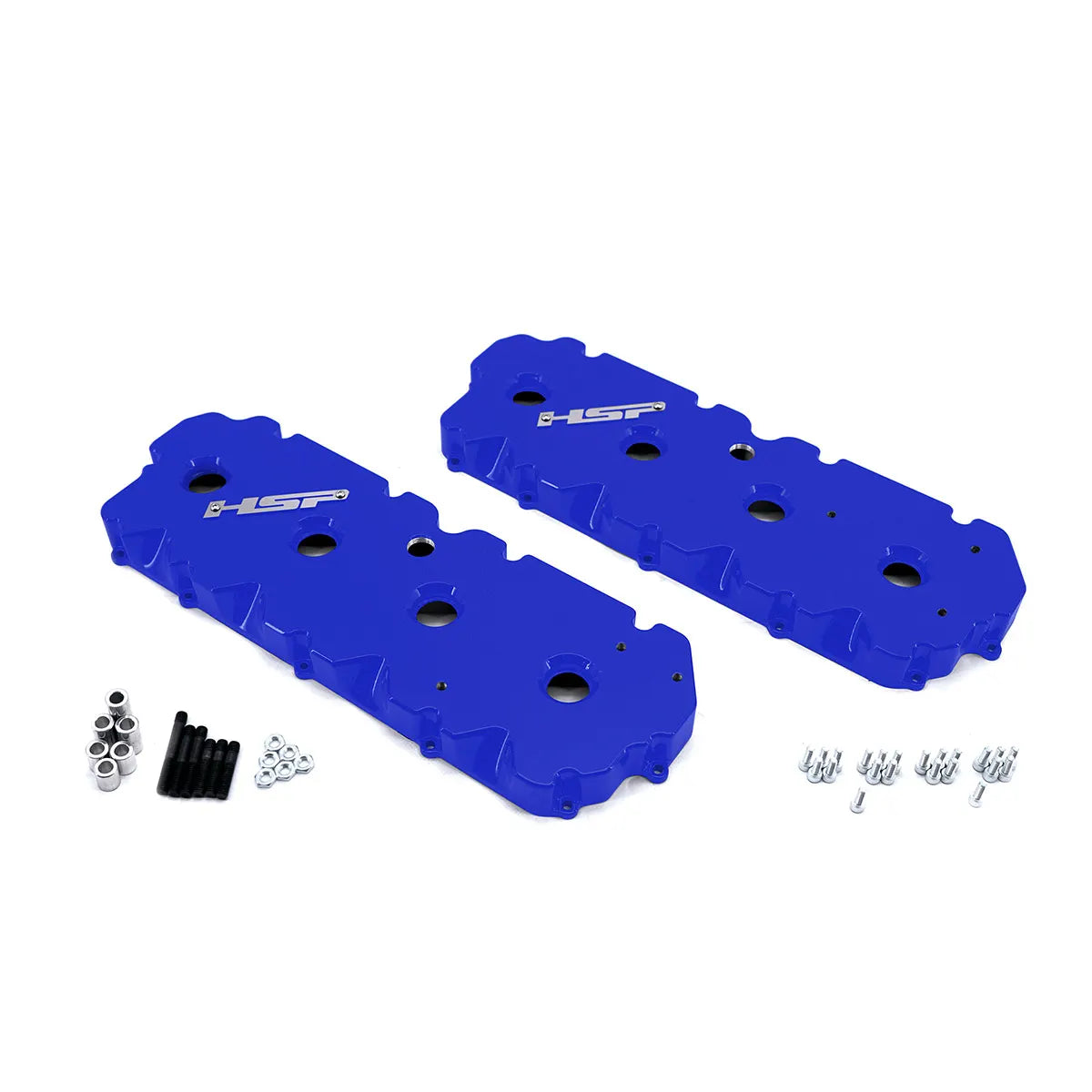

• Striking Powder Coat Options
• Complete New Hardware Included
• Better Fit Than Factory Covers
