03-05 FMW 467.7 5.9L SINGLE SWAP TURBO & PIPING

πŸ”₯ FMW S467.7 Turbo Kit for 3rd Gen Cummins – 2nd Gen Swap with T4 Piping &...
SKU: 0305-4677FMW-2GTPK
$2,857.00
$2,857.00

πŸ”₯ FMW S467.7 Turbo Kit for 3rd Gen Cummins – 2nd Gen Swap with T4 Piping & Optional Manifold

Step up your performance game with the Stainless Diesel FMW S467.7 Turbo Kit β€” engineered for 3rd Gen 5.9L Cummins owners looking for faster spool, lower EGTs, and serious horsepower. Built around the high-flow BorgWarner S400SX3 67.7mm Forged Milled Wheel (FMW) turbo, this kit features Stainless Diesel’s proven 2nd Gen-style piping layout for better airflow, drivability, and room to grow into compounds later.

Designed with CNC-machined flanges, high-strength aluminized steel piping, and built-to-order quality, this kit is a durable and efficient solution for street-driven trucks, hot daily drivers, or weekend competition builds.

β€”

πŸŒ€ Turbo Specs – BorgWarner S400SX3 S467.7 FMW:

  • Compressor Wheel: 67.7mm inducer / 91mm exducer – FMW with Extended Tip Technology

  • Turbine Wheel: 83.5mm inducer / 74mm exducer – Cast Inconel 713 for high-temp durability

  • Compressor Cover: 0.67 A/R race cover with 5.50" inlet & 3.00" hose discharge

  • Standard Turbine Housing: T4 1.10 A/R Twin Scroll (divided volute, v-band outlet)

  • Optional Turbine Housings:
    β€’ 0.90 A/R – for quick spool (not recommended above 600 HP)
    β€’ 1.00 A/R – ideal for hot street/daily up to 750 HP
    β€’ 1.10 A/R – max flow for high-power builds

β€”

πŸ”§ Kit Includes:

  • BorgWarner FMW S467.7 Turbocharger

  • Stainless Diesel 2nd Gen Style Turbo Piping Kit (made-to-order)

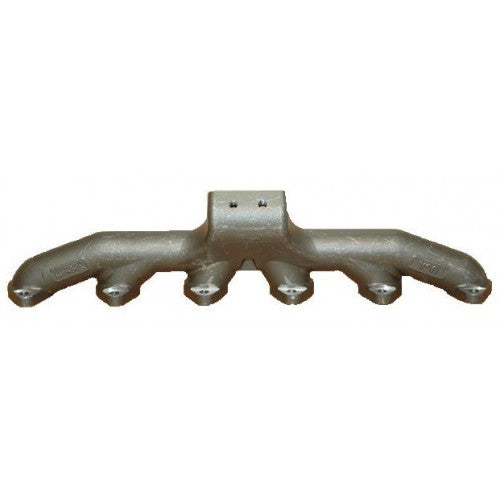

  • Optional: Stainless Diesel T4 24V Exhaust Manifold

  • Flow Boss Cold Air Intake w/ S&B Filter + Pre-filter wrap

  • Turbo Blanket

  • -6 Braided Stainless High-Temp Oil Feed Line + Fittings

  • Oil Drain Line + Gasket + Press-in Aluminum Block Fitting

  • Turbo Gaskets, Mounting Studs, and Bolts

  • S400 V-Band Clamp for Discharge

  • 3.00" Bead-Rolled Intercooler Pipe

  • 5.00" Air Cleaner Pipe w/ AIT Sensor Bung

  • 5.50" to 5.00" Silicone Transition Boot w/ T-Bolt Clamps

  • 4.00" Aluminized Steel Downpipe

  • 1.00" Billet Divided Spacer

  • Water Line (for 2003–2005 models)

  • Manifold Gaskets

β€”

πŸ›  Fitment & Notes:

  • For 2003–2007.5 5.9L Cummins (3rd Gen Dodge Ram)

  • Requires 2nd Gen-style T4 manifold (available as option)

  • Inverted manifold layout improves spool and makes future twin upgrade easier

  • All piping kits are built-to-order β€” allow 1–2 weeks for production

  • Built tough β€” no plastic or rubber charge-air paths

β€”

πŸ’¬ Why Choose This Kit?

  • Proven turbo design from BorgWarner with extended tip FMW tech

  • Engineered for efficient airflow, reduced backpressure & strong throttle response

  • Stainless Diesel strength β€” no compromise, high-boost capable design

  • Twin-position layout = easier compound upgrade later

β€”

Build a stronger, faster, cleaner-spooling truck with this competition-ready turbo system built around the trusted 467.7 platform.
